Automotive RF welding machines are designed to join compatible thermoplastic materials used in vehicle interiors, flexible trim components, protective covers, and other automotive products. By applying radio frequency energy and controlled pressure, these machines can form consistent seams along defined contours, helping manufacturers meet product specifications and production requirements.
Shanghai Junjingsai Automation Machinery Co., Ltd. manufactures radio frequency welding equipment for industrial plastic joining. With experience dating back to 2002, the company develops customized welding solutions for applications requiring specific tooling, working dimensions, weld patterns, and production volumes.
From compact fixtures for individual components to large format systems for oversized parts, the right machine depends on material compatibility, welding area, component geometry, target output, and the required level of automation.
Automotive RF welding machines are industrial systems that use radio frequency energy to join compatible thermoplastic materials used in automotive components. The process, also known as high frequency welding or HF welding, uses a high frequency electromagnetic field to generate heat within suitable materials through dielectric heating. Pressure brings the softened layers together, allowing them to form a bonded seam as they cool.
When polar molecules in a compatible material respond to the alternating electromagnetic field, dielectric losses generate heating within the welding zone. This differs from conventional heat sealing, which transfers heat from an externally heated tool.
Automotive RF welding equipment can be configured with custom electrodes, a suitable RF generator, application-specific fixtures, programmable controls, and manual or automated material handling. These features allow manufacturers to adapt the welding process to different component shapes, seam layouts, and production requirements.
Not every automotive plastic is suitable for RF welding. Material formulation, dielectric properties, thickness, coatings, and reinforcement must be evaluated before a machine configuration is finalized.
Radio frequency welding uses an alternating electromagnetic field to heat compatible dielectric materials. The process is controlled through energy input, pressure, weld time, and cooling conditions.
The operator or automated handling system places the component between the welding electrodes. Fixtures position the material according to the required seam geometry and help prevent movement during the welding cycle.
Automotive parts often have curved edges, shaped corners, or complex contours. The fixture and electrode design must accommodate these features while maintaining suitable contact and pressure distribution.
The RF generator supplies high frequency electromagnetic energy to the electrodes. In compatible materials, polar molecules respond to the alternating field, producing heat through dielectric losses.
The amount of energy required depends on material properties, material thickness, the size of the welding area, electrode geometry, and the intended seam characteristics.
The electromagnetic field generates heat within the compatible material rather than relying entirely on surface heating. When the material reaches the required processing condition, pressure brings the softened layers together to form the weld.
The appropriate combination of energy, pressure, and timing helps establish the required seam dimensions and strength. Excessive energy may damage the material, while insufficient energy can produce incomplete bonding.
After the RF energy is switched off, pressure may be maintained while the welded area cools. The component is then released for inspection or further assembly.
The process should be evaluated against the finished component's dimensional, appearance, strength, and durability requirements. The appropriate tests depend on the part's intended function and applicable automotive specifications.
Automotive RF welding machines are suitable for selected components made from RF-compatible thermoplastics. Their applications depend on material construction, component design, and the performance requirements of the finished part.

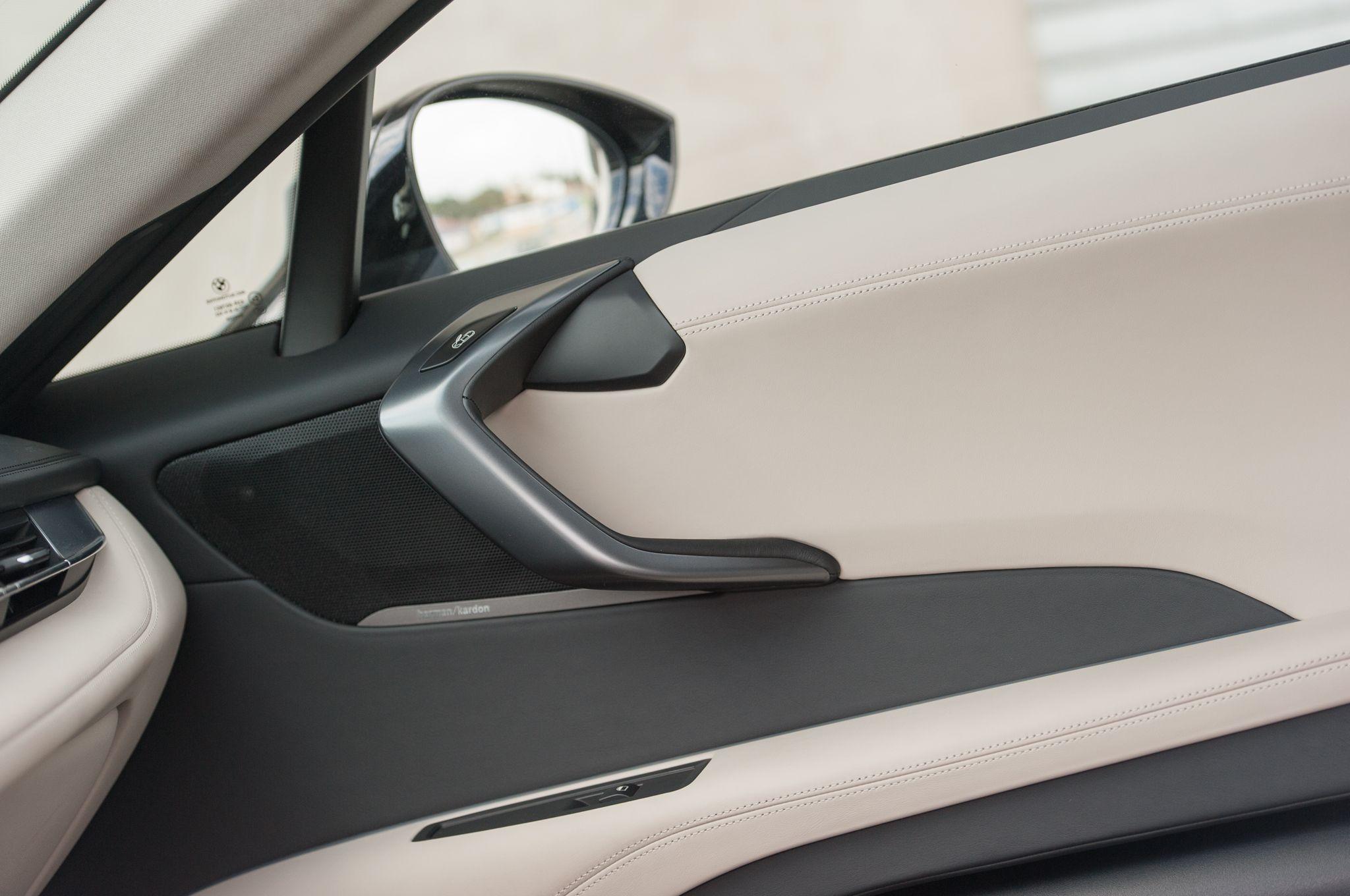

Automotive interiors may include flexible trim panels, seat-related components, decorative coverings, and other assemblies made from compatible materials. RF welding can join selected material layers along defined seam patterns.
Custom electrodes can follow the required contour and help maintain consistent seam placement across repeated production cycles.
Some interior panel assemblies incorporate flexible thermoplastic layers, decorative films, or compatible coated materials. Where the material construction supports dielectric heating, RF welding can be considered for joining selected sections or forming shaped seams.
The process must be assessed against the component's appearance, dimensional stability, surface finish, and assembly requirements.
Protective covers, flexible enclosures, and selected vehicle-related covers may use RF welding when their materials are suitable. Customized tooling can accommodate different product dimensions and seam configurations.
Certain flexible ducts, protective elements, and thermoplastic assemblies may be suitable for radio frequency welding. Material compatibility and the required service conditions should be confirmed before selecting the joining process.
Large format RF welding systems can be designed for components that exceed the working dimensions of standard equipment. The welding area, electrode support, pressing mechanism, and operator access should be considered together to accommodate the full component safely and consistently.
High frequency welding machines offer several potential benefits for compatible automotive materials when the equipment and process are properly matched to the application.
Application-specific electrodes and controlled process parameters help produce repeatable weld patterns. Consistency depends on material stability, fixture accuracy, electrode condition, and the control of energy, pressure, and cooling.
Custom tooling can follow straight, curved, or shaped seam paths. This is useful for automotive interiors and other components where the weld must align with a defined profile or assembly boundary.
Radio frequency technology generates heat through dielectric losses inside suitable materials. This heating method can be useful for joining compatible overlapping layers without depending solely on heat transferred from an external hot surface.
RF welding can join multiple layers of compatible thermoplastics when their dielectric properties and construction allow effective energy transfer. The material stack, layer thickness, and electrode design must be evaluated to achieve consistent results.
A suitable machine can be configured for low-volume manufacturing, frequent product changes, or higher production volumes. Tooling design, material handling, and cycle time should be selected according to the expected product mix and output target.
Depending on the component and manufacturing process, an RF welding machine may include automated loading, positioning, clamping, unloading, and process monitoring. Automation can reduce repetitive manual handling and improve cycle consistency when the overall system is properly designed.
Automotive applications vary considerably in component dimensions, seam geometry, and manufacturing volume. Machine configuration should reflect these differences rather than relying on generator power alone.
The RF generator supplies the energy used for dielectric heating. Its capacity should match the material, electrode design, welding area, and required production conditions.
The equipment should provide appropriate control over energy application and the welding sequence. Final operating parameters should be established through sample trials and confirmed under representative production conditions.
Electrodes define the shape and dimensions of the weld. Automotive parts may require curved electrodes, multiple seam paths, shaped tooling, or dedicated fixtures that support complex geometries.
The design should account for material overlap, component tolerances, pressure distribution, electrode clearance, and the risk of arcing or localized overheating.
The welding area determines the component dimensions that can be accommodated. A large format machine may be appropriate for oversized trim pieces, wide flexible panels, or components with extensive seam layouts.
Selection should consider the maximum workpiece dimensions, access for loading and unloading, electrode support, pressing force, and available factory space. A larger working area does not automatically guarantee higher output; the complete production cycle must also be assessed.
Manual machines can suit applications with low production volumes, variable components, or frequent tooling changes. Semi-automatic systems can improve repeatability while retaining operator control over selected steps.
Fully automated systems may be appropriate for stable, high-volume production where loading, positioning, clamping, welding, and unloading can be integrated into a repeatable sequence.
Automation level should reflect the required output, product variation, labor model, factory layout, and maintenance capabilities.
A control system may manage weld time, RF energy application, pressing sequence, and cooling time. Depending on the equipment design, additional options can include programmable recipes, cycle monitoring, safety interlocks, and production data interfaces.
These functions can help maintain process consistency when combined with suitable tooling, operator training, preventive maintenance, and documented quality procedures.
RF welding and conventional heat sealing use different methods to generate heat and join plastic materials.
| Comparison factor | RF welding / HF welding | Conventional heat sealing |
|---|---|---|
| Heat generation | Dielectric heating within compatible materials | Heat transferred from an externally heated tool |
| Material compatibility | Selected polar thermoplastics with suitable dielectric properties | Many heat-sealable films and thermoplastics |
| Tooling | RF electrodes designed for the seam geometry | Heated bars, jaws, or other sealing tools |
| Process parameters | RF energy, pressure, weld time, and cooling | Tool temperature, pressure, dwell time, and cooling |
| Typical applications | Selected automotive flexible components and compatible thermoplastic assemblies | Compatible films, laminates, and heat-sealable components |
| Selection considerations | Material response, welding area, seam geometry, and output | Material sealing window, component design, and output |
The appropriate joining method depends on the actual material, product design, required seam performance, and manufacturing conditions. RF welding should be selected only after confirming that the materials respond suitably to dielectric heating.
Choosing the right RF welder requires a clear understanding of the component, its materials, and the intended production process.
Identify the exact polymer, material formulation, thickness, coating, and reinforcement. PVC is commonly used in RF welding, while certain TPU and polyurethane-based materials may also be suitable.
Not all automotive plastics respond effectively to RF energy. Sample testing should be completed when compatibility is uncertain.
Provide the maximum component dimensions, seam length, contour, and number of welds per part. These details help determine the working area, electrode design, fixture layout, and pressing mechanism.
Specify the intended seam strength, appearance, dimensional tolerance, and any required resistance to environmental exposure or repeated loading. Testing should be defined before machine acceptance so that the process can be evaluated against measurable requirements.
Estimate the required number of components per hour or shift. Include positioning, clamping, RF welding, cooling, unloading, inspection, and changeover time.
A machine's nominal welding cycle does not represent the full production rate. For high production volumes, handling time, tooling changes, downtime, and inspection can influence output as much as the welding stage itself.
Determine whether manual, semi-automatic, or fully automated operation is appropriate. Consider component variability, available operators, material feeding, factory layout, upstream and downstream processes, and maintenance access.
Assess guarding, electrical protection, emergency stops, interlocks, RF shielding where applicable, and operating instructions. Installation and operation should follow the equipment manufacturer's guidance and applicable safety requirements.
The quality of an RF-welded component depends on the complete process, including material selection, tooling design, process parameters, and inspection.
Changes in material formulation, thickness, supplier, or layer construction can affect dielectric heating and seam formation. Manufacturers should evaluate material changes before applying existing process settings to new production batches.
Inspection methods should reflect the part's intended function and customer requirements. Depending on the component, they may include visual checks, dimensional inspection, seam-strength testing, or functional testing.
Repeatable positioning, maintained electrodes, stable process settings, and operator training help reduce variation. Production controls should also define how nonconforming parts are identified and handled.
Electrode wear, contamination, misalignment, or damage can affect weld quality. Regular inspection and maintenance help preserve seam geometry and repeatable processing.
Shanghai Junjingsai Automation Machinery Co., Ltd. has manufactured welding equipment since 2002 and develops RF welding solutions for compatible thermoplastics used in industrial applications.
For automotive projects, the machine configuration should be based on the actual component and production workflow. Product samples, engineering drawings, material specifications, and output targets provide the basis for evaluating the welding area, RF generator, tooling, pressing mechanism, and automation options.
Junjingsai can assess project requirements such as:
A product-specific evaluation helps establish a suitable machine specification and identify the trials needed before equipment acceptance.
If you are sourcing automotive RF welding machines for interior components, flexible trim, protective covers, or other compatible thermoplastic products, prepare the material details, product drawings, required seam performance, and target production volumes.
These details help the equipment supplier assess material suitability, recommend a tooling concept, and determine whether a standard configuration or a customized system is appropriate.
Contact Junjingsai to discuss your component, welding area, automation needs, and production requirements.
Automotive RF welding machines join compatible thermoplastic materials used in selected interior trim components, flexible panels, protective covers, and other vehicle-related products. Their configuration depends on the material, component geometry, seam requirements, and production volume.
RF welding and high frequency welding, also known as HF welding, generally refer to the same family of dielectric welding processes in industrial plastic joining. Both use high-frequency electromagnetic energy to generate heat within compatible materials. Equipment configuration and operating frequency depend on the application and machine design.
Radio frequency welding creates an alternating electromagnetic field between electrodes. Polar molecules in compatible materials respond to the field, producing heat through dielectric losses. Pressure is then applied to bring the softened layers together and form a welded joint.
PVC is one of the most commonly RF-welded materials. Certain TPU and polyurethane-based materials may also be suitable, depending on their formulation and dielectric properties. Material trials are recommended because not all automotive plastics respond effectively to RF energy.
Yes. RF welding can join multiple layers of compatible thermoplastics when their dielectric properties, thicknesses, and construction allow effective energy transfer. The practical layer arrangement depends on the material stack, electrode design, process parameters, and required weld performance.
A large format RF welding machine is configured with a working area suitable for larger components or extensive seam layouts. Selection should consider component dimensions, electrode support, pressing force, operator access, and the required production cycle.
Yes. Depending on the application, the system can integrate automated loading, positioning, clamping, welding, unloading, and process monitoring. Full automation is most appropriate when product design and production conditions support a stable, repeatable workflow.
Production volumes influence the required cycle time, tooling arrangement, handling system, and automation level. Lower-volume work may benefit from flexible fixtures and manual operation, while stable, high-volume production may justify dedicated tooling and automated handling.
The RF generator produces the high-frequency electrical energy supplied to the welding electrodes. Its capacity must match the material, welding area, electrode design, and required processing conditions. Correct energy control helps establish repeatable weld quality.
Manufacturers should verify material compatibility, optimize energy and pressure settings, maintain accurate positioning, inspect electrode condition, and use defined acceptance tests. Process monitoring and operator training can further support repeatability throughout production.
